Working Principle

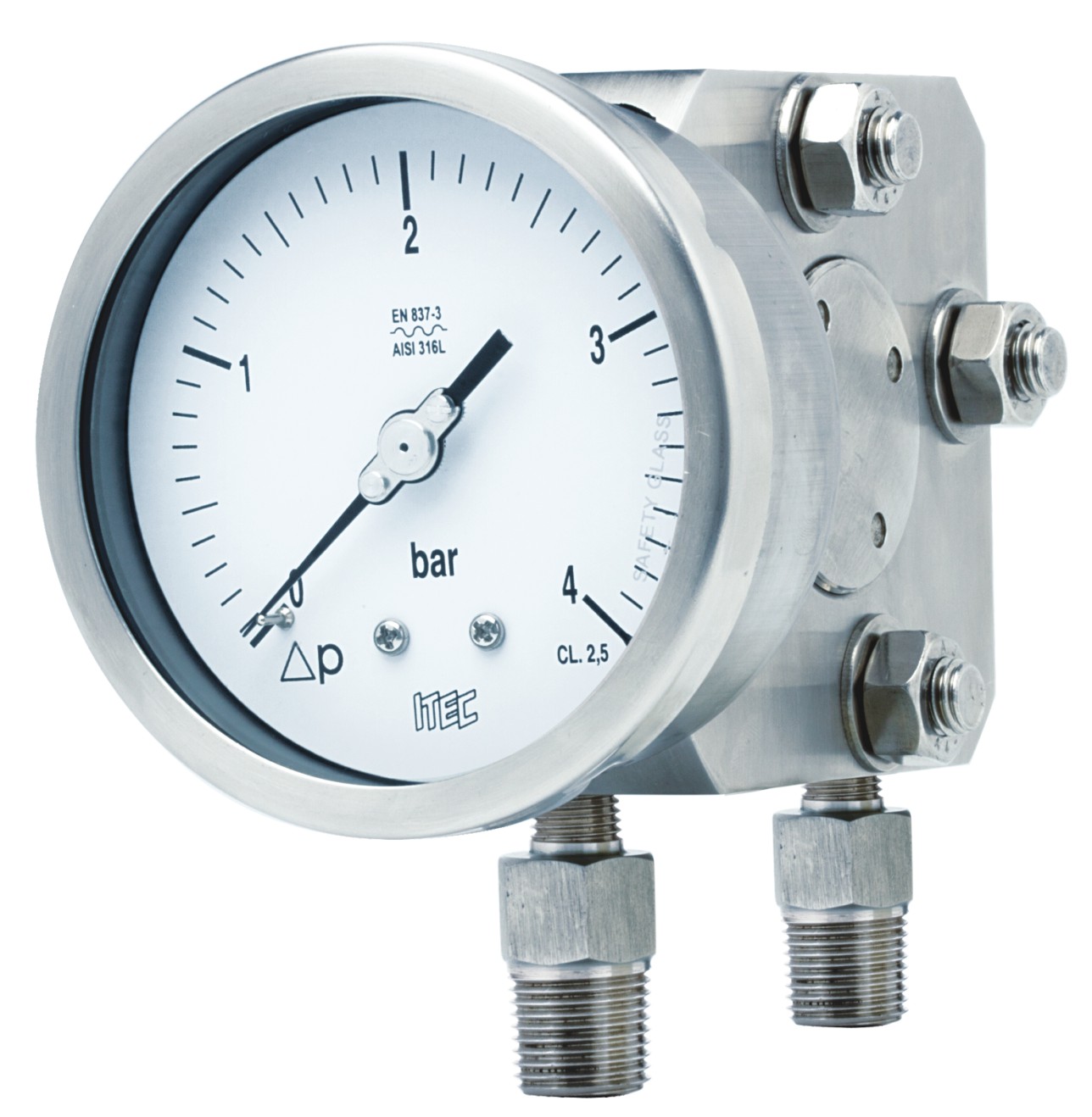

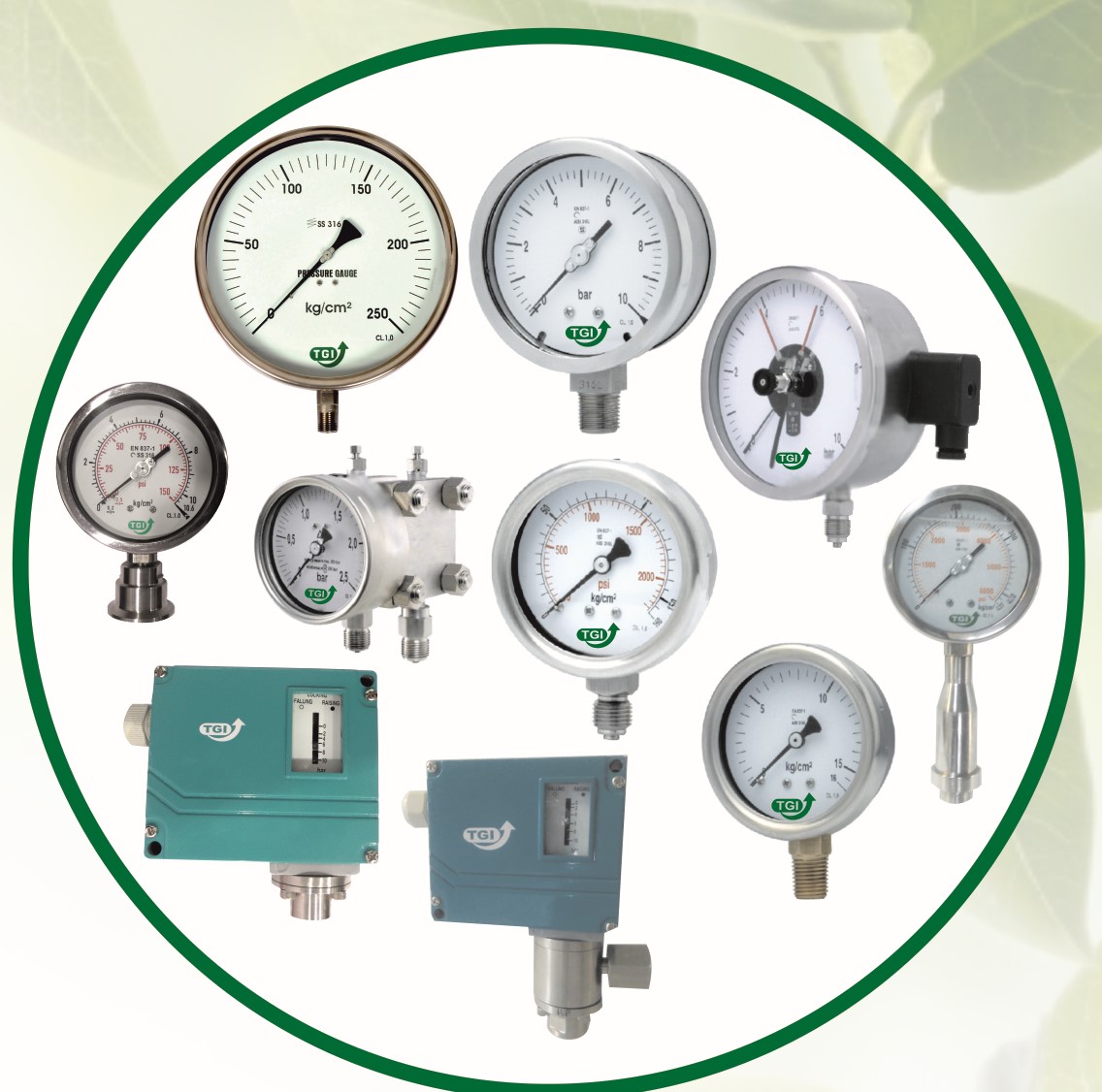

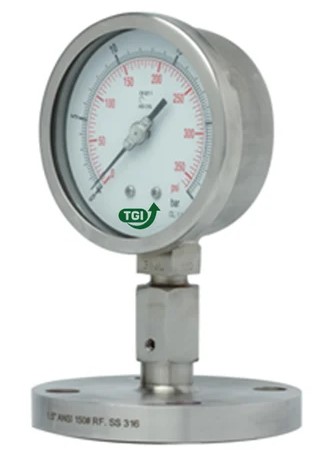

The most common measurement principle is mechanical, primarily utilizing the Bourdon tube.

• Bourdon Tube: A curved, flattened metal tube that tends to straighten as internal pressure increases.
• Mechanical Linkage: As the tube straightens, it moves a gear and lever system.

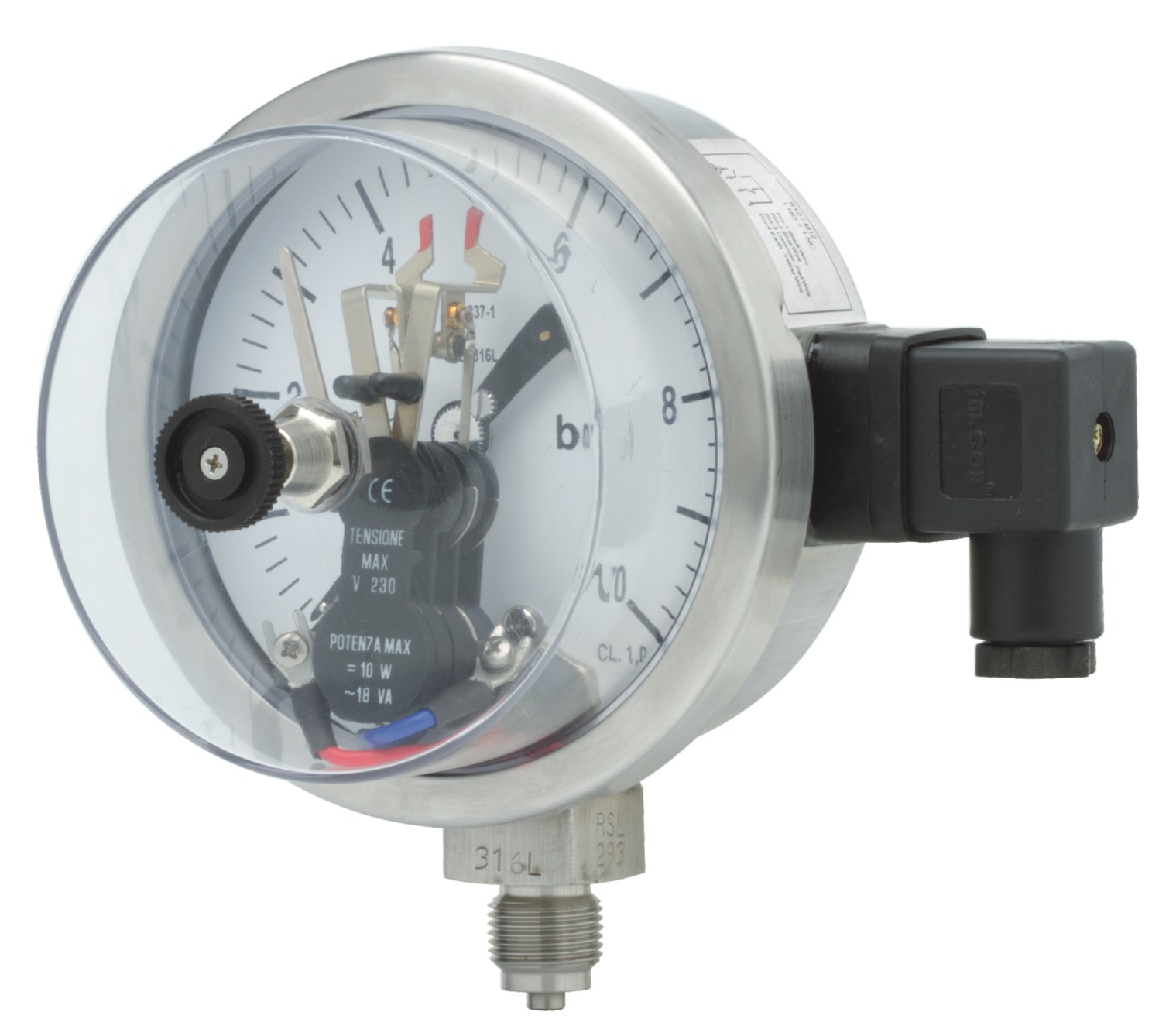

• Visual Output: This motion drives a needle across a calibrated dial to show the reading.

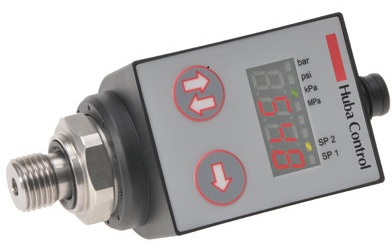

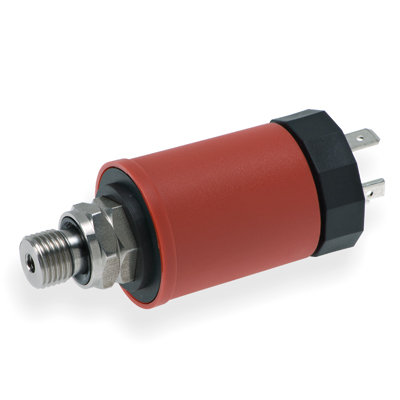

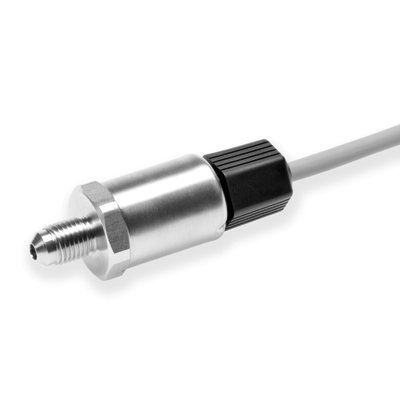

• Electronic Measurement: Digital gauges use piezoelectric or strain gauge sensors to convert pressure into electrical signals, which are then shown on an LCD.
